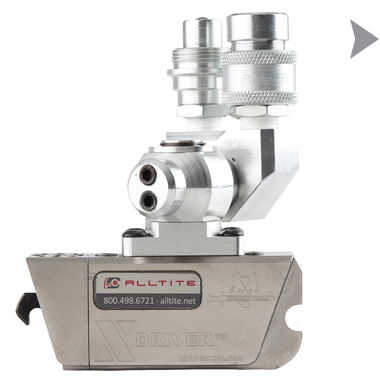

360 X 360 Degree Hose Rotation

The X Driver not only has a 360 degree hose swivel, but by connecting the patented hose adapter, you have 360 by 360 rotation—on two planes. By combining the hose swivels into one attachment, the hose is more easily managed. No more messing with multiple swivel heads that get in the way of the job, or multiple hose systems that cause frustration by tangling.

Dual Mode Holding Pawl

Only the X Driver has a patented optional holding pawl available. It’s use comes standard but “anti-lock” mode is available as well. Engage it for hands-free operation, or disengage it, if that’s your preference.

Cost of Ownership

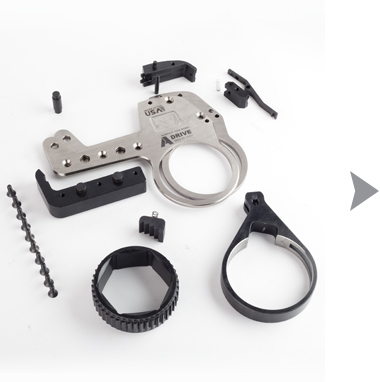

The X Driver is engineered with ease of maintenance. There are no proprietary tools for taking off the end cap. The side plate tools are the same size. There is one universally available spring size inside the tool, making it an easy repair by any user. There is one single piece piston, again, decreasing your chance of failure.

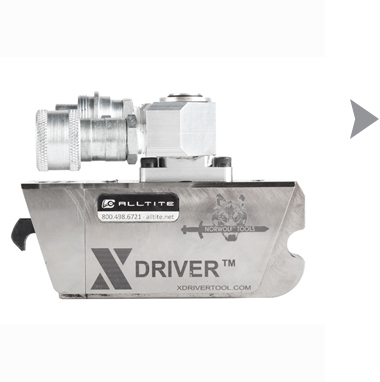

Flattest & Thinnest

The profile is totally flat with no extrusions that create hangups. Designed with a smaller cylinder bore but longer levers, it creates less stress on all parts. With longer and thinnest throat radius that allows for more access to a wider range of applications and no shroud to get in the way, fitting the wrench into tight spaces becomes easier. There is no link pin. No pinch points. And the powerhead is always able to lay flat.

In-line Cylinder Alignment

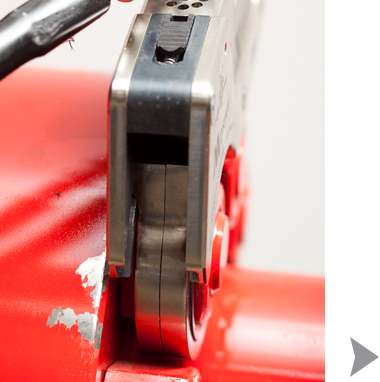

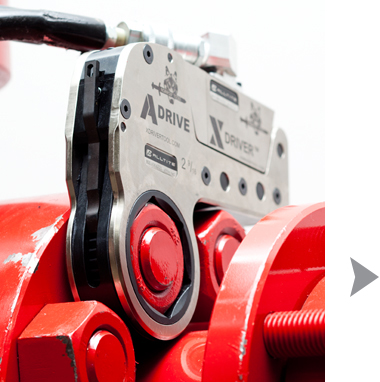

The X Driver locks into drives which fully protect the cylinder from reaction points. The X Driver pivots inside the drives, in-line, to prevent side load and tension to the cylinder, for safety and endurance.

P 316.686.3010 | F 316.686.3151 | alltite.com
Multi Patented
